Basic scatterplot using <code>geom_point()</code>

A scatterplot displays the values of two variables along two axes. It shows the relationship between them, eventually revealing a correlation.

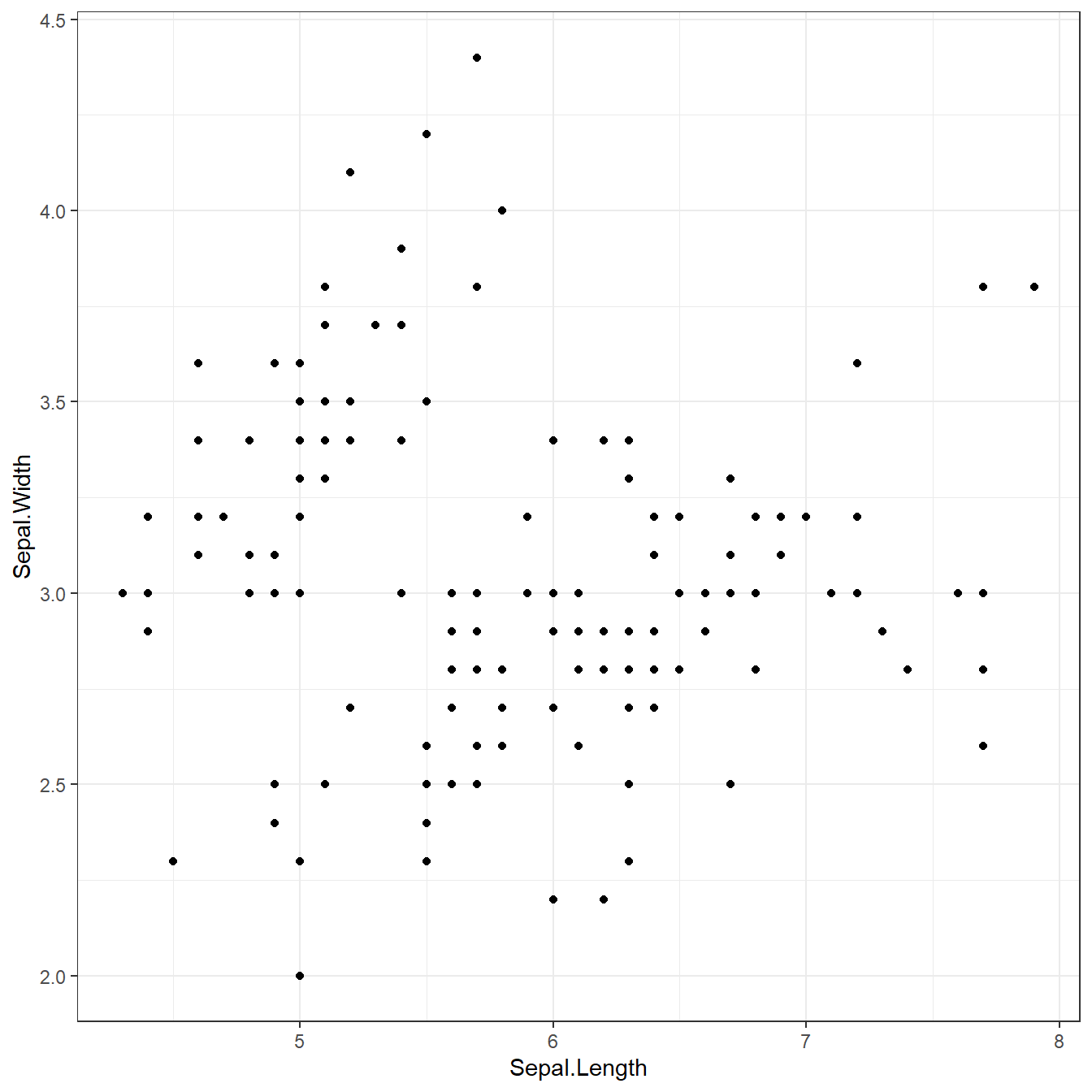

Here the relationship between Sepal width and Sepal length of several plants is shown.

It illustrates the basic utilization of ggplot2 for scatterplots:

1 - provide a dataframe
2 - tell which variable to show on x and y axis
3 - add a geom_point() to show points.

# Library
library(ggplot2)

# The iris dataset is provided natively by R
#head(iris)

# basic scatterplot
ggplot(iris, aes(x=Sepal.Length, y=Sepal.Width)) +
    geom_point() + theme_bw()
