Adding a linear trend to a scatterplot helps the reader in seeing
patterns. ggplot2 provides the geom_smooth()
function that allows to add the linear trend and the confidence interval
around it if needed (option se=TRUE).
Note: the method argument allows to apply
different smoothing method like glm, loess and more. See the doc
for more.
# Libraries
library(ggplot2)
library(hrbrthemes)
# Creation of dataset
set.seed(123)
data <- data.frame(
cond = rep(c("condition_1", "condition_2"), each=10),
my_x = 1:100 + rnorm(100,sd=9),
my_y = 1:100 + rnorm(100,sd=16)
)
# Basic scatter plot
ggplot(data, aes(x=my_x, y=my_y)) +
geom_point( color="#69b3a2") +
theme_ipsum()

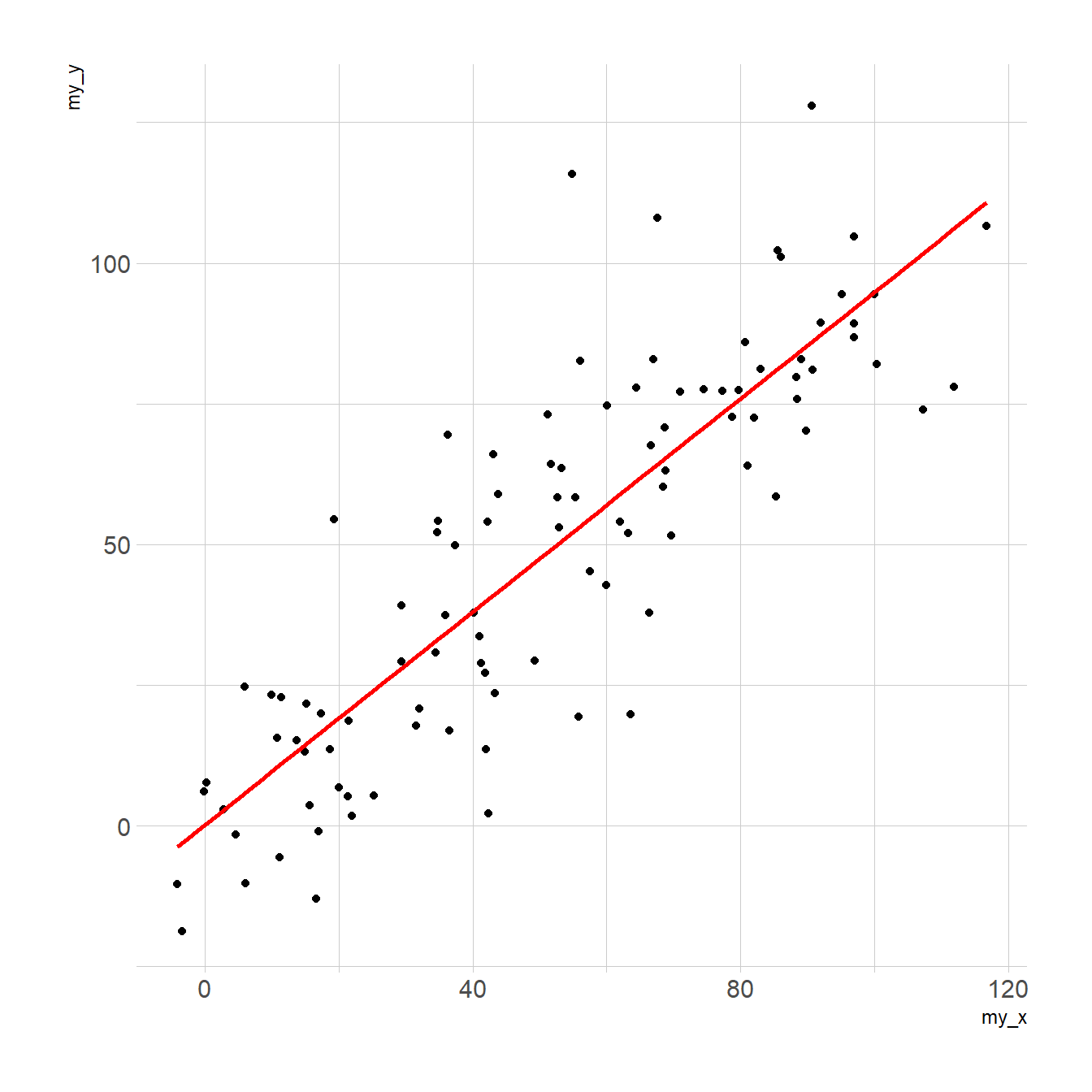

# With linear trend
ggplot(data, aes(x=my_x, y=my_y)) +
geom_point() +
geom_smooth(method=lm , color="red", se=FALSE) +
theme_ipsum()

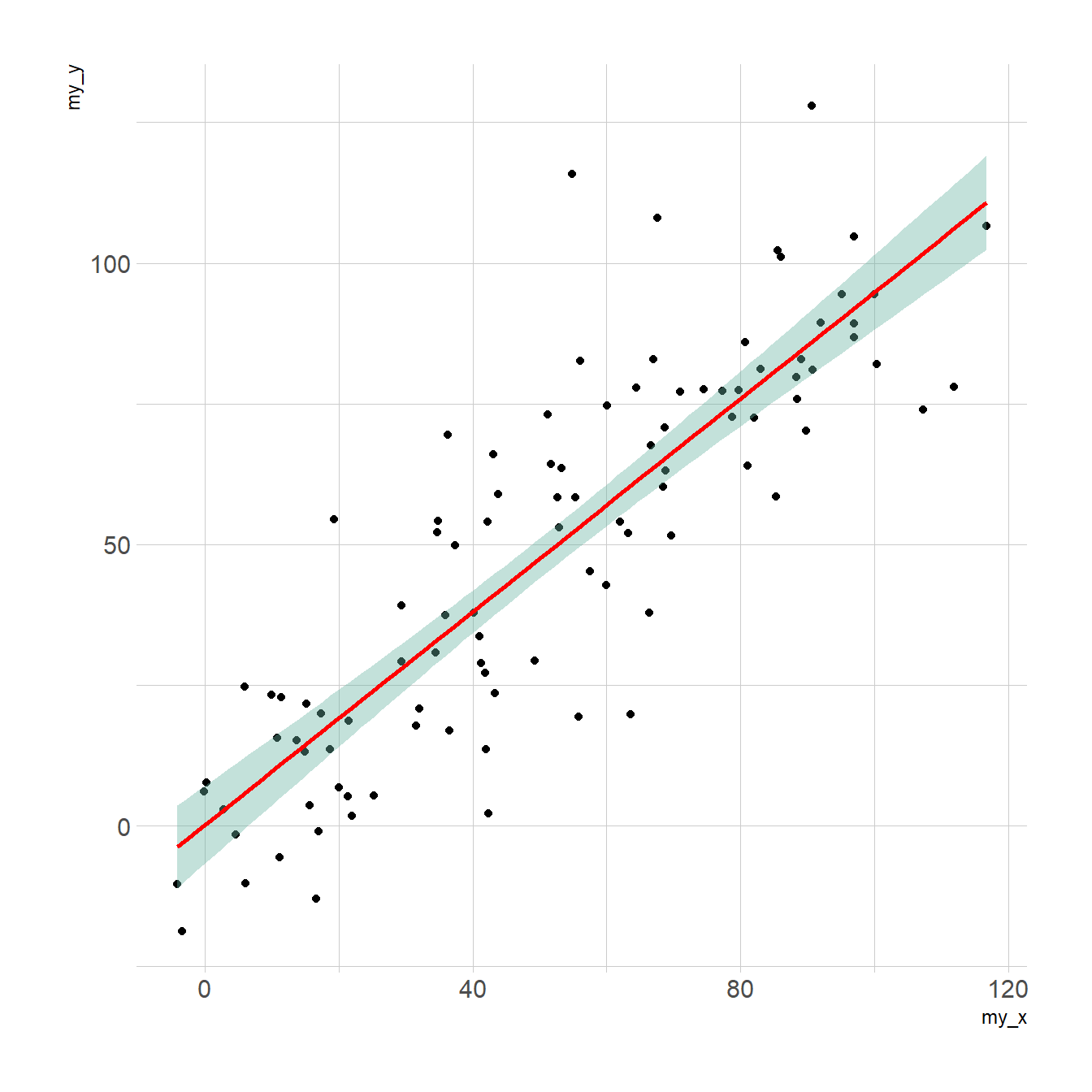

# Linear trend + confidence interval
ggplot(data, aes(x=my_x, y=my_y)) +
geom_point() +
geom_smooth(method=lm , color="red", fill="#69b3a2", se=TRUE) +
theme_ipsum()
